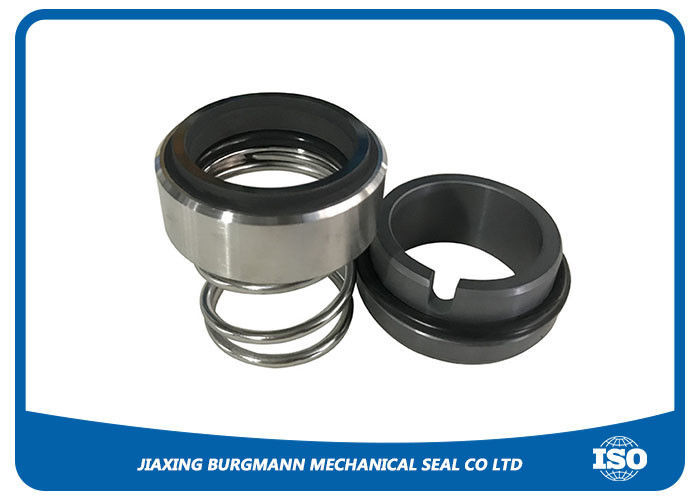

M3N KSB Model Burgmann Mechanical Seal / Pump Seal With Conical Spring

M3N KSB Model Burgmann Mechanical Seal / Pump Seal With Conical Spring

  • M3N KSB Model Burgmann Mechanical Seal / Pump Seal With Conical Spring
M3N KSB Model Burgmann Mechanical Seal / Pump Seal With Conical Spring
Product Details:
Place of Origin: Zhejiang, China
Brand Name: JG
Certification: FDA certificate
Model Number: M3N
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD
Packaging Details: white box
Delivery Time: 3~10DAYS
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000PCS
Contact Now
Detailed Product Description
Size: 6~80mm HS Code: 8484200090
Pressure: Up To 1Mpa Temperature: -20°C To +250°C
Speeds: 15m/s Metal Parts: SS304,SS316
High Light:

industrial shaft seals

,

mechanical pump shaft seal



Burgmann M3N KSB Conical Spring Industry Pump Mechanical Seal





Features:



◆ Conical spring,unbalanced,O-ring pusher construction
◆ Torque transmission via conical spring, independent of direction of rotation
◆ Wide option in seal face material
◆ Spring with deep coils to reduce the risk of clogging in solids content or viscous liquids



This mechanical seal meet with the standard EN12756 (DIN24960), simple structure, wide application, good reliability.

Suitable for applications in water pumps, sewage pumps, submerged pumps, and chemical flow pumps, etc.



Operating Limited:



Shaft diameter 6~80mm
Pressure up to 1Mpa
Temperature -20~250°C
Slidingvelocity 15m/s



Material:



Rotary Ring Car / SIC/TC/Cer
O-Ring Viton, EPDM, NBR, AFLAS, Kalrez,PTFE
Spring and Metal Parts SUS304, SUS316
Stationary Ring Car / SIC /TC/Cer





Advantages:



• Spring unit averted from the product so no sticking and clogging of the springs
• Safe operation (no fractures) because of seal face locking by square pin
• Suitable for pressure reversals
• Operation in vacuum without additional seat locking possible
• No damage of the shaft by a dynamically loaded O-Ring
• Small installation sizes
• Best suitable for conversions, no adaptations of the pump
• Insensitive to solid containing and abrasive media
• Advantages of a balanced seal even with plain shafts
• Insensitive to shaft movements because of the stationary design



Application:



• Water and waste water technology
• Chemical industry
• Refining technology
• Dirty, abrasive and solid containing media
• Fugitive hydrocarbons (no API seal!)
• Sticky and stringy media
• Chemical standard pumps
• Sewage pumps
