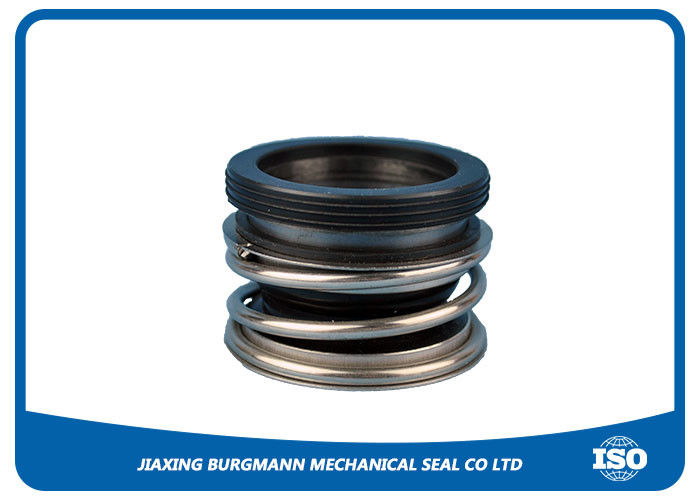

Elastomer Bellows Rotating Industrial Mechanical Seals MG1 Model For Water Pump

Elastomer Bellows Rotating Industrial Mechanical Seals MG1 Model For Water Pump

    • Elastomer Bellows Rotating Industrial Mechanical Seals MG1 Model For Water Pump
    • Elastomer Bellows Rotating Industrial Mechanical Seals MG1 Model For Water Pump
  • Elastomer Bellows Rotating Industrial Mechanical Seals MG1 Model For Water Pump

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: JG
    Certification: FDA or ISO 9001:2008
    Model Number: MG1

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Price: USD
    Packaging Details: white box or as customer's requirement
    Delivery Time: 1~5DAYS
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Size: 10~120mm Pressure: ≤1.2Mpa
    Temperature: -20~120℃ Linear Speed: ≤10m/s
    Axial Movement: ±0.5mm Seat Style: G60, G6, G50, G606, G9
    High Light:

    industrial shaft seals

    ,

    industrial pump seals



    Easy Install Elastomer Pump Mechanical Seal For Water Pump ISO9001:2008 MG1





    Product Description:

    Features:


    • For plain shafts
    • Single and dual seal
    • Elastomer bellows rotating
    • Unbalanced
    • Independent of direction of rotation
    • No torsion on bellows



    Advantages:



    • Shaft protection over the entire seal length
    • Protection of the seal face during installation due to special bellows design
    • Insensitive to shaft deflections due to large axial movement ability
    • Universal application opportunities
    • Important material certifications available
    • High flexibality due to wide offer on materials
    • Suitable for low-end sterile applications
    • Special design for hot water pumps (RMG12) available
    • Dimension adaptions and additional seats available



    Operating range:



    Temperature: –20 °C ~120 °C
    Pressure: 12 bar

    Speed:10m/s

    Axial movement: ±0.5 mm



    Recommended applications:



    • Water and waste water technology
    • Food and beverage industry
    • Pulp and paper industry
    • Chemical industry
    • Oil applications
    • Water, waste water, slurries (up to 5 % by weight)
    • Pulp (up to 4 % otro)
    • Latex
    • Dairies, beverages
    • Sulfide slurries
    • Chemicals
    • Oils
    • Chemical standard pumps
    • Helical screw pumps
    • Stock pumps
    • Circulating pumps
    • Submersible pumps
    • Water and waster water pumps
