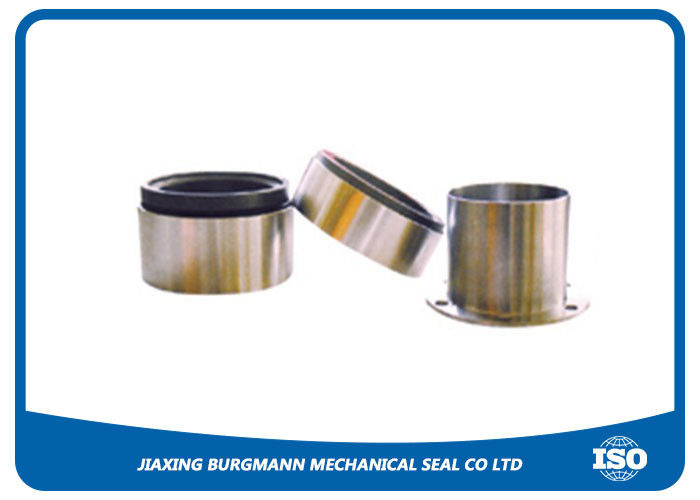

40m/s Balanced Mechanical Seal External Spring Design With Metal Bushing

40m/s Balanced Mechanical Seal External Spring Design With Metal Bushing

40m/s Balanced Mechanical Seal External Spring Design With Metal Bushing

Product Details:

Place of Origin: Zhejiang, China
Brand Name: JG
Certification: FDA certificate
Model Number: DTM

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD
Packaging Details: white box
Delivery Time: 3~10DAYS
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000PCS
Contact Now
Detailed Product Description
Size: 30~100mm HS Code: 8484200090
Pressure: Up To 4Mpa Temperature: -40°C To +220°C
Speeds: 40m/s Metal Parts: SS304,SS316,904L, Titan
High Light:

leak proof mechanical seal

,

pump seal



Single Face Type Balance Mechanical Seal DTM With Metal Bushing





Features:



Single Face Type Balance Mechanical Seal DTM With Metal Bushing.

The DTM type mechanical seal uses the external spring design, avoids the medium to the spring any influence, causes the spring to maintain the best condition forever, guarantees the friction surface in the viscous, the dirty and so on tight fitting in the environment to have the extremely strong environment adaptability ability. Equipped with cooling water jacket, the use of soft water and low pressure steam and other fluids to the sealing work environment for efficient temperature control, high viscosity medium is particularly important.



Operating Limited:



Shaft diameter 30~100mm
Pressure up to 4Mpa
Temperature -40~220°C
Slidingvelocity 40m/s



Material:



Rotary Ring Car / SIC/TC/Cer
O-Ring Viton, EPDM, NBR, AFLAS, Kalrez,PTFE
Spring and Metal Parts SUS304, SUS316, Titan, 904L
Stationary Ring Car / SIC /TC/Cer





Advantages:



• Spring unit averted from the product so no sticking and clogging of the springs
• Safe operation (no fractures) because of seal face locking by square pin
• Suitable for pressure reversals
• Operation in vacuum without additional seat locking possible
• No damage of the shaft by a dynamically loaded O-Ring
• Small installation sizes
• Best suitable for conversions, no adaptations of the pump
• Insensitive to solid containing and abrasive media
• Advantages of a balanced seal even with plain shafts
• Insensitive to shaft movements because of the stationary design



Application:



• Water and waste water technology
• Chemical industry
• Refining technology
• Dirty, abrasive and solid containing media
• Fugitive hydrocarbons (no API seal!)
• Sticky and stringy media
• Chemical standard pumps
• Sewage pumps



Shipping & Payment Terms:



Port of Loading: Shanghai

Shipping Method: DHL,UPS,FEDEX,TNT, etc

Payment Terms: T/T, Western Union, money gram



Our services:



◆ OEM/ODM orders are available for our factory

◆ Accept customized mechanical seals according to your drawing or requirements

◆ Small quantity is accepted

◆ Provides excellent quality with competitive price
