Double Stationary Mechanical Seal , Dying Pump Single Spring Leak Proof Mechanical Seal

Double Stationary Mechanical Seal , Dying Pump Single Spring Leak Proof Mechanical Seal

    • Double Stationary Mechanical Seal , Dying Pump Single Spring Leak Proof Mechanical Seal
  • Double Stationary Mechanical Seal , Dying Pump Single Spring Leak Proof Mechanical Seal

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: JG
    Certification: FDA certificate
    Model Number: 250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD
    Packaging Details: white box
    Delivery Time: 3~10DAYS
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description
    Size: 20~100mm HS Code: 8484200090
    Pressure: Up To 1.2Mpa Temperature: -20~200°C
    Speeds: 25m/s Metal Parts: SS304,SS316
    High Light:

    o ring mechanical seal

    ,

    mechanical seal replacement

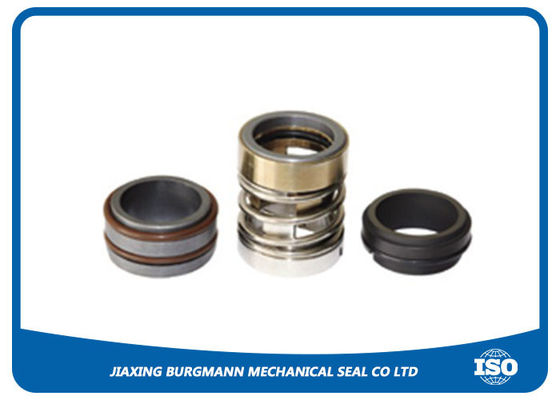

    Double Stationary Seal Ring Single Spring Mechanical Seal For Dying Pump





    Features:


    Single seal/Unbalanced/Independent of direction of rotation/Stationary seal ring can adopt single stationary seal ring or double stationary seal ring.

    It is allowed to adopt various materials amd emd combinations to meet wide demands of chemical pump, printing&dyeing pump, dyeing&finishing equipment.




    Operating Limited:



    Shaft diameter 20~100mm
    Pressure up to 1.2Mpa
    Temperature -20~200°C
    Slidingvelocity 25m/s



    Material:



    Rotary Ring Car / SIC/TC/Cer
    O-Ring Viton, EPDM, NBR, AFLAS, Kalrez,PTFE
    Spring and Metal Parts SUS304, SUS316
    Stationary Ring Car / SIC /TC/Cer





    Advantages:



    • Spring unit averted from the product so no sticking and clogging of the springs
    • Safe operation (no fractures) because of seal face locking by square pin
    • Suitable for pressure reversals
    • Operation in vacuum without additional seat locking possible
    • No damage of the shaft by a dynamically loaded O-Ring
    • Small installation sizes
    • Best suitable for conversions, no adaptations of the pump
    • Insensitive to solid containing and abrasive media
    • Advantages of a balanced seal even with plain shafts
    • Insensitive to shaft movements because of the stationary design



    Application:



    • Water and waste water technology
    • Chemical industry
    • Refining technology
    • Dirty, abrasive and solid containing media
    • Fugitive hydrocarbons (no API seal!)
    • Sticky and stringy media
    • Chemical standard pumps
    • Sewage pumps



    Shipping & Payment Terms:



    Port of Loading: Shanghai

    Shipping Method: DHL,UPS,FEDEX,TNT, etc

    Payment Terms: T/T, Western Union, money gram



    Our services:



    ◆ OEM/ODM orders are available for our factory

    ◆ Accept customized mechanical seals according to your drawing or requirements

    ◆ Small quantity is accepted

    ◆ Provides excellent quality with competitive price
