Product Details
Place of Origin: Zhejiang, China
Brand Name: JG
Certification: FDA and ISO9001:2008
Model Number: JG-11
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Packaging Details: As customer's requirement
Delivery Time: 5~15DAYS
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS
Style: |
Metal Bellows Seal |
Size: |
20~75mm |
Temperature: |
-100~400℃ |
Pressure: |
25bar |
Speed: |
23m/s |
Sample: |
Available |
Style: |
Metal Bellows Seal |
Size: |
20~75mm |
Temperature: |
-100~400℃ |
Pressure: |
25bar |
Speed: |
23m/s |
Sample: |
Available |

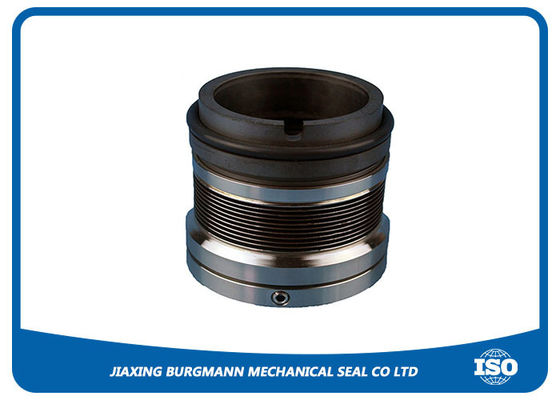

High Pressure Flexible Metal Bellows Mechanical Seal Standard DIN24960
JG-11 is High Pressure Flexible Metal Bellows Mechanical Seal Standard DIN24960. The metal bellows use Hast C276, AM350, 316 or 304.
1. Soft, flexible, easy to bend, vibration absorbing.
2. Metal bellows to absorb large axial displacement between straight tube and support frame, and small horizontal displacement;
3. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;
4. All of our metal bellows are easy to clean and maintenance.
Metal bellows type: MFL85N, MFLWT80, John Crane 609, 680 and so on.
Operating range:
Shaft diameter | 20~75mm |
Pressure | 2.5Mpa |
Temperature | -100~400°C |
Slidingvelocity | 23m/s |
Material:
Rotary Ring: Car / SIC/TC/Cer
O-Ring: , EPDM, NBR, AFLAS, Kalrez
Spring and Metal Parts: SUS304/SUS316, AM350, HAST C276
Stationary Ring: Car / SIC /TC/Cer
Recommended Applications:
Widely used in petrochemical, instrumentation, aerospace, marine, pipeline, chemical, electric power, cement, nuclear power station, metallurgical and other industries.
Testing:
1. Helium leakage test.
2.Chemical analysis for material
3. Mechanical property testing for material
4. NDT will be carried out on all products
5. Pressure testing
6. Dimension and appearance quality inspection
7. Package inspection
Shipping & Payment Terms:
Port of Loading: Shanghai
Shipping Method: DHL,UPS,FEDEX,TNT, etc
Payment Terms: T/T, Western Union, money gram
Our services:
· OEM/ODM orders are available for our factory
· Accept customized mechanical seals according to your drawing or requirements
· Small quantity is accepted
· Provides excellent quality with competitive price
RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to your quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample(besides metal bellows and cartridge seal) for free charge but the freight cost need your support.
Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us~!
