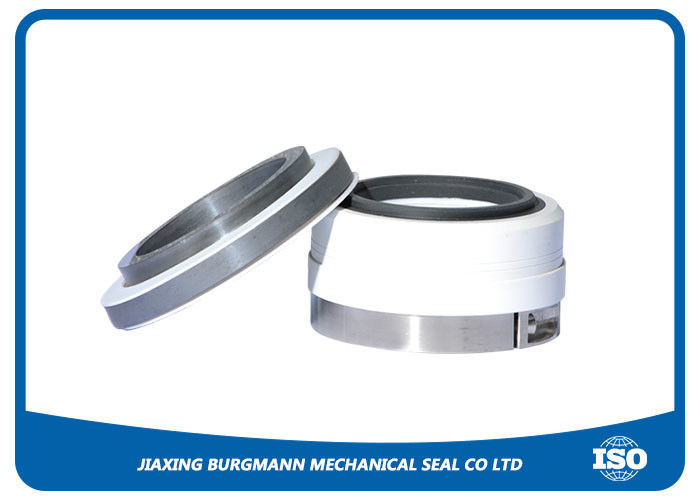

Multi Spring Single Industrial Pump Seals , Fixed Replaceable PTFE Bellow Seals

Product Details

Place of Origin: Zhejiang, China

Brand Name: JG

Certification: FDA certificate

Model Number: WB2

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD

Packaging Details: white box

Delivery Time: 3~10DAYS

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000PCS

Get Best Price
Contact Now
Specifications
High Light:

mechanical shaft seal

,

single spring mechanical seal

Size:
30~65mm
HS Code:
8484200090
Pressure:
Up To 0.5Mpa
Temperature:
-10°C To +100°C
Speeds:
15m/s
Metal Parts:
SS304,SS316
Size:
30~65mm
HS Code:
8484200090
Pressure:
Up To 0.5Mpa
Temperature:
-10°C To +100°C
Speeds:
15m/s
Metal Parts:
SS304,SS316
Description
Multi Spring Single Industrial Pump Seals , Fixed Replaceable PTFE Bellow Seals



Multiple Spring Single Mechanical Pump Seal WB2 For Chemical Industry



Features:

a.Externally mounted.single face,multiple springs and driven by the pure PTFE bellows
b.Non-pusher,internal balanced structure,fine fluctuation of compensition and reliable seal



Multiple Spring Single Mechanical Pump Seal WB2 For Chemical Industry.

These Seal are PTFE Bellow seals designed to handle highly corrosive liquids. These seals are outside mounted with simple installation procedure and hence cost effective for corrosive media sealing. It designated as Fixed replaceable bellow face respectively. For replaceable version there is flexibility for selection of face material as per the media to sealed, which can be easily removed replaced is highly desirable in severe.



Operating Limited:



Shaft diameter 30~65mm
Pressure up to 0.5Mpa
Temperature -10~100°C
Slidingvelocity 15m/s



Material:



Rotary Ring Car / SIC/TC/Cer
O-Ring , EPDM, NBR, AFLAS, Kalrez,PTFE
Spring and Metal Parts SUS304, SUS316, Titan, 904L
Stationary Ring Car / SIC /TC/Cer





Advantages:



  • Self-adjusting to shaft misalignments deflections
  • The length of the contact area of the bellows with the shaft is an optimum compromise Between ease of assembly (less friction) sufficient adhesive force for torque transmission.
  • The seal fulfills very specific leakage requirements.



Application:



Machine specific seals found extensively in Food Process, Dairy and Brewery Industries
Available as Food Grade (with FDA compliant materials)



Shipping & Payment Terms:



Port of Loading: Shanghai

Shipping Method: DHL,UPS,FEDEX,TNT, etc

Payment Terms: T/T, Western Union, money gram



Our services:



◆ OEM/ODM orders are available for our factory

◆ Accept customized mechanical seals according to your drawing or requirements

◆ Small quantity is accepted

◆ Provides excellent quality with competitive price
