Metal Bellows Cartridge Mechanical Seal , Stationary Rotating Mechanical Seal

Product Details

Place of Origin: Zhejiang, China

Brand Name: JG

Certification: FDA certificate

Model Number: 50

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD

Packaging Details: white box

Delivery Time: 3~10DAYS

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000PCS

Get Best Price
Contact Now
Specifications
High Light:

industrial mechanical seals

,

mechanical seal parts

Size:
24~75mm
HS Code:
8484200090
Pressure:
Up To 2.5Mpa
Temperature:
-100~400°C
Speeds:
23m/s
Metal Parts:
SS304,SS316
Size:
24~75mm
HS Code:
8484200090
Pressure:
Up To 2.5Mpa
Temperature:
-100~400°C
Speeds:
23m/s
Metal Parts:
SS304,SS316
Description

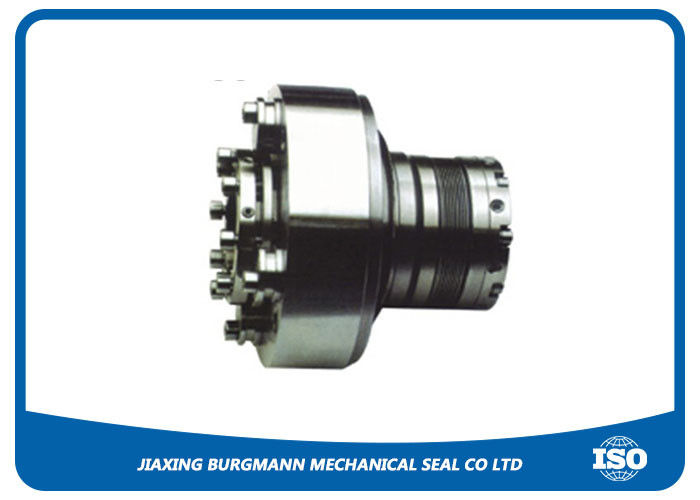

Metal Bellows Cartridge Mechanical Seal , Stationary Rotating Mechanical Seal



Rotating Metal Bellows Cartridge Mechanical Seal 1 Year Warranty JG50





Features:



Rotating Metal Bellows Cartridge Mechanical Seal 1 Year Warranty JG50.

JG50 is series linked metal bellows  cartridge mechanical seal. It is widely used, endurature of high temperature and chemical corrosion.

Metal bellows design is to prevent pellets from falling inside, automatic cleaning.







Operating Limited:



Shaft diameter 24~75mm
Pressure up to 2.5Mpa
Temperature -100~400°C
Slidingvelocity 23m/s



Material:



Rotary Ring Car / SIC/TC/Cer
O-Ring , EPDM, NBR, AFLAS, Kalrez,PTFE
Spring and Metal Parts SUS304, SUS316
Stationary Ring Car / SIC /TC/Cer





Advantages:



• Spring unit averted from the product so no sticking and clogging of the springs
• Safe operation (no fractures) because of seal face locking by square pin
• Suitable for pressure reversals
• Operation in vacuum without additional seat locking possible
• No damage of the shaft by a dynamically loaded O-Ring
• Small installation sizes
• Best suitable for conversions, no adaptations of the pump
• Insensitive to solid containing and abrasive media
• Advantages of a balanced seal even with plain shafts
• Insensitive to shaft movements because of the stationary design



Application:



• Water and waste water technology
• Chemical industry
• Refining technology
• Dirty, abrasive and solid containing media
• Fugitive hydrocarbons (no API seal!)
• Sticky and stringy media
• Chemical standard pumps
• Sewage pumps



Shipping & Payment Terms:



Port of Loading: Shanghai

Shipping Method: DHL,UPS,FEDEX,TNT, etc

Payment Terms: T/T, Western Union, money gram



Our services:



◆ OEM/ODM orders are available for our factory

◆ Accept customized mechanical seals according to your drawing or requirements

◆ Small quantity is accepted

◆ Provides excellent quality with competitive price
