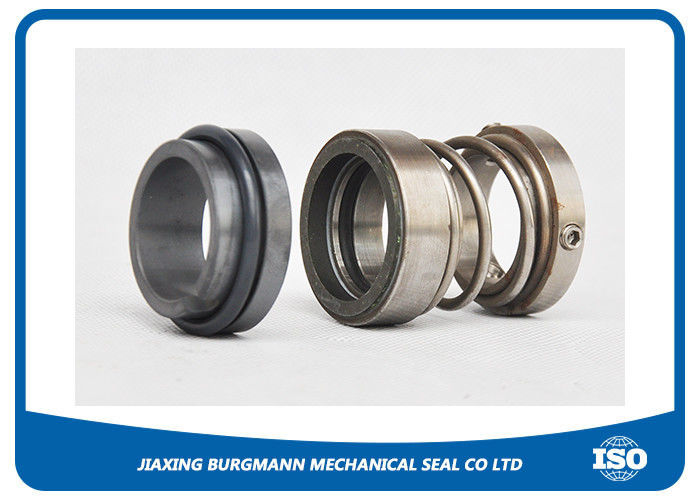

Unbalanced Water Pump Mechanical Seals ISO9001 : 2008 MG1

Product Details

Place of Origin: Zhejiang, China

Brand Name: JG

Certification: FDA or ISO 9001:2008

Model Number: MG1

Payment & Shipping Terms

Minimum Order Quantity: 10PCS

Price: USD

Packaging Details: white box or as customer's requirement

Delivery Time: 1~5DAYS

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000PCS

Get Best Price
Contact Now
Specifications
High Light:

ISO9001 Industrial Mechanical Seals

,

Industrial Mechanical Seals 10m/s

,

MG1 Water Pump Mechanical Seals

Product Name:
Elastomer Pump Mechanical Seal
Size:
10~120mm
Pressure:
≤1.2Mpa
Temperature:
-20~120℃
Linear Speed:
≤10m/s
Axial Movement:
±0.5mm
Seat Style:
G60, G6, G50, G606, G9
Applications:
Oil Applications
Product Name:
Elastomer Pump Mechanical Seal
Size:
10~120mm
Pressure:
≤1.2Mpa
Temperature:
-20~120℃
Linear Speed:
≤10m/s
Axial Movement:
±0.5mm
Seat Style:
G60, G6, G50, G606, G9
Applications:
Oil Applications
Description
Unbalanced Water Pump Mechanical Seals ISO9001 : 2008 MG1

Easy Install Elastomer Pump Mechanical Seal For Water Pump ISO9001:2008 MG1





Product Description:
These are extensively used in various centrifugal pumps and other allied devices with rotating shaft, for handling various suspended solid slurry, crystallizing slurry, chemical slurry, saturated chemical slurry and other allied slurries. These are designed with Single Acting unbalance pusher type mechanical seal and inside mounted mechanical seal. Elastomer Pump Mechanical Seal is having universal chemical compatibility due to design of PTFE elastomeric and spring design depended on shaft rotation.

Features:


• For plain shafts
• Single and dual seal
• Elastomer bellows rotating
• Unbalanced
• Independent of direction of rotation
• No torsion on bellows



Advantages:



• Shaft protection over the entire seal length
• Protection of the seal face during installation due to special bellows design
• Insensitive to shaft deflections due to large axial movement ability
• Universal application opportunities
• Important material certifications available
• High flexibality due to wide offer on materials
• Suitable for low-end sterile applications
• Special design for hot water pumps (RMG12) available
• Dimension adaptions and additional seats available



Operating range:



Temperature: –20 °C ~120 °C
Pressure: 12 bar

Speed:10m/s

Axial movement: ±0.5 mm



Recommended applications:



• Water and waste water technology
• Food and beverage industry
• Pulp and paper industry
• Chemical industry
• Oil applications
• Water, waste water, slurries (up to 5 % by weight)
• Pulp (up to 4 % otro)
• Latex
• Dairies, beverages
• Sulfide slurries
• Chemicals
• Oils
• Chemical standard pumps
• Helical screw pumps
• Stock pumps
• Circulating pumps
• Submersible pumps
• Water and waster water pumps



Why Choose Us:



1. Highly-knowledgeable equipment and application expertise
2. Technical innovation in mechanical seal design
3. Design qualification and Design team
4. Simulation and Rotating balance testing
5. Reliable, customer-tailored, sealing solutions
6. Rapid and effective Reaction on feedback

Unbalanced Water Pump Mechanical Seals ISO9001 : 2008 MG1 0Unbalanced Water Pump Mechanical Seals ISO9001 : 2008 MG1 1
