Superior mechanical seals that reduce operatting costs and improve system reliability from shutdown to shutdown~
 |
| Place of Origin: | Zhejiang, China |
| Brand Name: | JG |
| Certification: | FDA certificate |
| Model Number: | SEG |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD |
| Packaging Details: | white box |
| Delivery Time: | 3~10DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS |
| Product Name: | Grundfos Cartridge Mechanical Seal | Application: | Water And Waste Water Technology |
|---|---|---|---|
| Size: | 22 And 32mm | HS Code: | 8484200090 |
| Pressure: | Up To 2Mpa | Temperature: | -20 To +220℃ |
| Speeds: | 10m/s | Metal Parts: | SS304,SS316, HAST C |
| High Light: | Grundfos Cartridge Mechanical Seal Replacement,22mm Mechanical Seal Replacement,32mm Mechanical Seal Replacement |
||

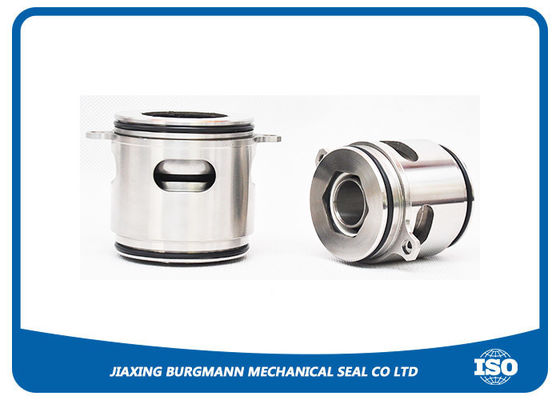

Grundfos Cartridge Mechanical Seal Replacement SEG shaft size 22mm and 32mm
Operating Limited:
| Shaft diameter | 22 and 32mm |
| Pressure | up to 2Mpa |
| Temperature | -20~220°C |
| Slidingvelocity | 10m/s |
Material:
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | Viton, EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316, HAST C |
| Stationary Ring | Car / SIC /TC/Cer |
REPLACEMENT SEAL OF GRUNDFOS SEAL TYPE H FOR USE IN CR/CRI/CRN PUMPS,SEALS OF 12MM,16MM AND 22MM SHAFT ARE AVAILABLE ON REQUEST. BALANCED, CARTRIDGE SEAL DESIGN,EASY TO INSTALL. DIFFERENT TYPES OF REPLACEMENT SEALS TO GRUNDFOS -SARLIN PUMPS ARE ALSO AVAILABLE ON REQUEST.
Advantages:
• Spring unit averted from the product so no sticking and clogging of the springs
• Safe operation (no fractures) because of seal face locking by square pin
• Suitable for pressure reversals
• Operation in vacuum without additional seat locking possible
• No damage of the shaft by a dynamically loaded O-Ring
• Small installation sizes
• Best suitable for conversions, no adaptations of the pump
• Insensitive to solid containing and abrasive media
• Advantages of a balanced seal even with plain shafts
• Insensitive to shaft movements because of the stationary design
Application:
• Water and waste water technology
• Chemical industry
• Refining technology
• Dirty, abrasive and solid containing media
• Fugitive hydrocarbons (no API seal!)
• Sticky and stringy media
• Chemical standard pumps
• Sewage pumps
Shipping & Payment Terms:
Port of Loading: Shanghai
Shipping Method: DHL,UPS,FEDEX,TNT, etc
Payment Terms: T/T, Western Union, money gram
Our services:
◆ OEM/ODM orders are available for our factory
◆ Accept customized mechanical seals according to your drawing or requirements
◆ Small quantity is accepted
◆ Provides excellent quality with competitive price
