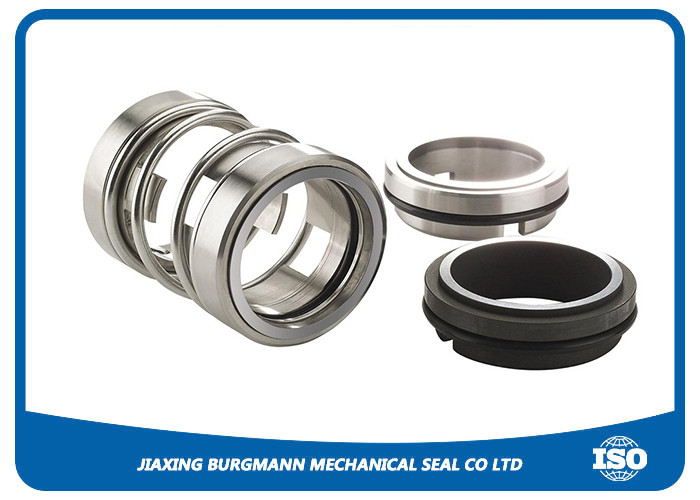

Jiaxing Burgmann Mechanical Seal, a distinguished name in the sealing industry, presents its advanced Leak Proof Mechanical Seal designed specifically for sewage pumps.
These seals are engineered to combat the harsh and complex environment of sewage handling. The robust construction begins with high-quality materials. The sealing faces, often crafted from wear-resistant ceramics or hardened metals like tungsten carbide, can endure the abrasive particles present in sewage, preventing premature wear and maintaining a tight seal over time.
The innovative design incorporates multiple sealing elements. A primary flexible seal, usually made of elastomers with excellent chemical resistance, acts as the first line of defense against leakage. Complemented by secondary backup seals, they work in tandem to ensure that even under extreme pressure fluctuations and varying flow rates typical of sewage systems, no fluid escapes.
During the manufacturing process, Jiaxing Burgmann adheres to stringent quality control. Precision machining of components guarantees accurate fit and function. Each seal undergoes rigorous testing, simulating real-world sewage pump operating conditions, including exposure to corrosive chemicals, high solids content, and temperature extremes. This dedication to quality results in a leak-proof mechanical seal that not only safeguards the environment by preventing sewage spills but also enhances the overall reliability and longevity of sewage pumps, reducing costly downtime and maintenance for end-users.
Features:
Single seal/Unbalanced/Independent of direction of rotation/Stationary seal ring can adopt single stationary seal ring or double stationary seal ring.
It is allowed to adopt various materials amd emd combinations to meet wide demands of chemical pump, printing&dyeing pump, dyeing&finishing equipment.
Operating Limited:
| Shaft diameter |
20~100mm |
| Pressure |
up to 1.2Mpa |
| Temperature |
-20~200°C |
| Slidingvelocity |
25m/s |
Material:
| Rotary Ring |
Car / SIC/TC/Cer |
| O-Ring |
, EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts |
SUS304, SUS316 |
| Stationary Ring |
Car / SIC /TC/Cer |
Advantages:
• Spring unit averted from the product so no sticking and clogging of the springs
• Safe operation (no fractures) because of seal face locking by square pin
• Suitable for pressure reversals
• Operation in vacuum without additional seat locking possible
• No damage of the shaft by a dynamically loaded O-Ring
• Small installation sizes
• Best suitable for conversions, no adaptations of the pump
• Insensitive to solid containing and abrasive media
• Advantages of a balanced seal even with plain shafts
• Insensitive to shaft movements because of the stationary design
Application:
• Water and waste water technology
• Chemical industry
• Refining technology
• Dirty, abrasive and solid containing media
• Fugitive hydrocarbons (no API seal!)
• Sticky and stringy media
• Chemical standard pumps
• Sewage pumps
