Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Replace Alfa Laval Pump Seal, 8-50mm Alfa Laval Pump Seal, 1.2Mpa Alfa Laval Pump Seal


Product Name:	Alfa Laval Pump Seal	Application:	Alfa Laval Pump
Size:	8~50mm	HS Code:	8484200090
Pressure:	Up To 1.2Mpa	Temperature:	-40°C To +200°C
Speeds:	10m/s	Metal Parts:	SS304 SS316 SiC NBR

Product Name:	Alfa Laval Pump Seal
Application:	Alfa Laval Pump
Size:	8~50mm
HS Code:	8484200090
Pressure:	Up To 1.2Mpa
Temperature:	-40°C To +200°C
Speeds:	10m/s
Metal Parts:	SS304 SS316 SiC NBR

Description

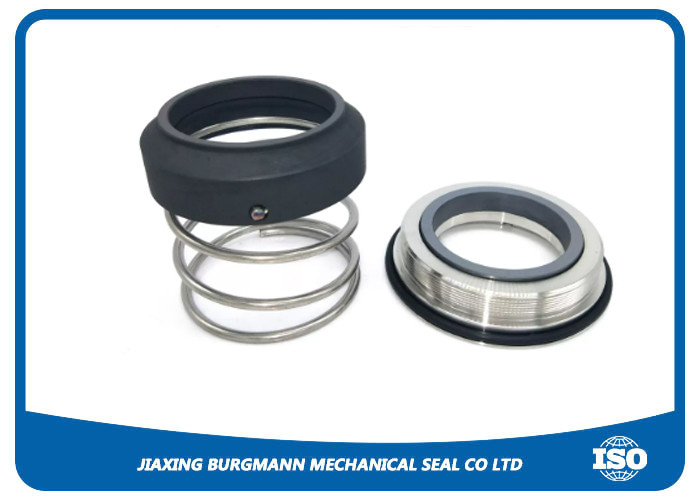

8-50mm Alfa Laval Pump Seal Replace 1.2Mpa Pressure

Alfa Laval Pump Seal Replace Alfa Laval Pump Seal

Jiaxing Burgmann Mechanical Seal harnesses its professional acumen to manufacture the Alfa Laval Pump Seal. This seal is meticulously engineered to conform to the stringent criteria of Alfa Laval pump systems.

In terms of materials, it commonly employs silicon carbide for the sealing faces. Such material exhibits outstanding abrasion and chemical resistance, which is indispensable when contending with complex fluids in industrial settings where Alfa Laval pumps operate.

The seal design features a dual-seal configuration. The primary seal, typically an elastomer, capitalizes on its flexibility and chemical inertness to preclude initial leakage. Complemented by a secondary seal, it fortifies the overall sealing integrity, safeguarding against pressure spikes and erratic flow patterns.

During production, Jiaxing Burgmann enforces rigorous quality control. Precision milling and grinding of components ensure an optimal fit. Comprehensive testing regimens, simulating actual Alfa Laval pump working conditions, are carried out. This encompasses trials under extreme temperatures and corrosive environments. Consequently, the resultant Alfa Laval Pump Seal not only meets brand performance benchmarks but also bolsters reliability, curbing leakage risks and extending pump service life, much to the advantage of end-users.

Dimensions: The sizes of seals vary for different series of pumps. For example, the seal dimensions for LKH 5/10/15/20/25/30/35/40/45/50/60 pumps and LKH 112/113/114 pumps are 31.7 mm. The seal sizes for SRU pumps include 20 mm, 30 mm, 35 mm, 45 mm, 55 mm, and 75 mm.

Temperature Range: Generally, it can reach up to 120 °C. For instance, the upper temperature limits for seals of fm/gm/em pumps, alc series pumps, and sru pumps are all 120 °C.

Pressure Range: Usually, it can go up to 10 kg/cm². Specifically, the upper pressure limits for seals of fm/gm/em pumps, alc series pumps, and sru pumps are 10 kg/cm², while the upper pressure limit for seals of LKH 112/113/114 pumps is 12 kg/cm².

Sealing Face Combinations: Common combinations include carbon/stainless steel (car/ss), carbon/silicon carbide (car/sic), carbon/ceramics (car/ceramic), silicon carbide/silicon carbide (sic/sic). For example, the sealing face combinations for LKH series pump seals include car/ss, car/sic, car/tc, sic/tc, sic/sic.
