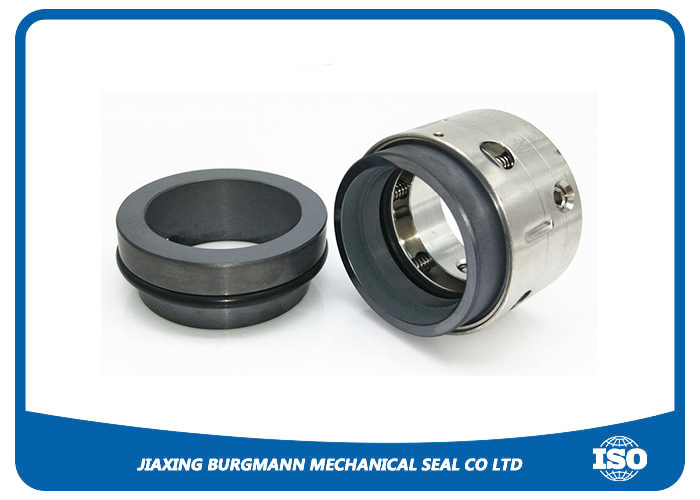

58U Mechanical Pump Seal
The 58U Mechanical Seal is a widely used pump seal designed for reliability in various industrial applications. It features a single-end, non-balanced, multi-spring structure with compact design, suitable for oil, water, solvents, and mildly corrosive media
Q1: What is the 58U Mechanical Pump Seal typically used for?
A1: The 58U Mechanical Seal is widely used in centrifugal pumps (such as IH, CZ, CHZ, and IS series) for handling water, oil, solvents, and mildly corrosive media in industries like chemical processing, water treatment, and general industrial fluid transfer.
Q2: What materials are used in the 58U seal’s construction?
A2: Standard components include:
Primary sealing faces: Silicon carbide (SiC) or tungsten carbide (TC)
Secondary seals: PTFE, NBR, or EPDM elastomers
Springs: Stainless steel (e.g., SS304/SS316)
Q3: Can the 58U seal handle abrasive or high-speed applications?
A3: While suitable for moderate conditions, abrasive fluids or extreme speeds may require upgraded materials (e.g., hardened SiC faces) or dual-seal configurations. Consult manufacturers for specific solutions.
Operating Limited:
| Shaft diameter |
14~100mm |
| Pressure |
up to 6Mpa |
| Temperature |
-20~200°C |
| Slidingvelocity |
20m/s |
Features:
1. Our seals can replace the original seals.
2.Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc
3.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
4.OEM and Customized products is welcomed.
5. Factory Price,High Quality ,Fast Delivery and Best Sevice.
Material:
| Rotary Ring |
Car / SIC/TC/Cer |
| O-Ring |
, EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts |
SUS304, SUS316, Titan, 904L |
| Stationary Ring |
Car / SIC /TC/Cer |
Mechanical seal 58U application range:
Pressure in the seal chamber: 0-1.2MPa
Temperature in the seal chamber: -30ºC------180ºC
Linear Velocity: ≤ 10m/s
Medium: water,oil and minor corrosive liquid
The direction of rolling: looking from the stationary face,if the pivot be rolled in clockwise direction,spring should be in right direction rolling.
Chemical industry
Pulp and paper industry
Water and waste water technology
Sugar industry
Low solids content media
Cooling water pump
Basic sterile application
Advantages:
◆ For extreme temperature ranges
◆ No dynamically loaded o ring
◆ Very good self c;eaning effect
◆ Suitable for low-end srerile applications
Application:
Strong corrosive fluids, such as sulphuric, nitric, phosphoric or hydrochloric acids.
Shipping & Payment Terms:
Port of Loading: Shanghai
Shipping Method: DHL,UPS,FEDEX,TNT, etc
Payment Terms: T/T, Western Union, money gram
Our services:
◆ OEM/ODM orders are available for our factory
◆ Accept customized mechanical seals according to your drawing or requirements
◆ Small quantity is accepted
◆ Provides excellent quality with competitive price
