CR Pump Mechanical Seal JMK

Product Details

Place of Origin: Zhejiang, China

Brand Name: JG

Certification: FDA certificate

Model Number: JMK

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: white box

Delivery Time: in stock

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 1000pcs

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      ≤0.6MPa Mechanical Seal, -20~+150℃ Pump Seal, SUS304/SUS316 CR Pump Seal


Product Name:	CR Pump Mechanical Seal JMK	Pressure:	≤0.6MPa
Appliction:	CR Pump Mechanical Seal	Temperature:	-20~+150℃
Retainer:	SUS304/SUS316	Stationary Ring:	Carbon/SIC/TC

Product Name:	CR Pump Mechanical Seal JMK
Pressure:	≤0.6MPa
Appliction:	CR Pump Mechanical Seal
Temperature:	-20~+150℃
Retainer:	SUS304/SUS316
Stationary Ring:	Carbon/SIC/TC

Description

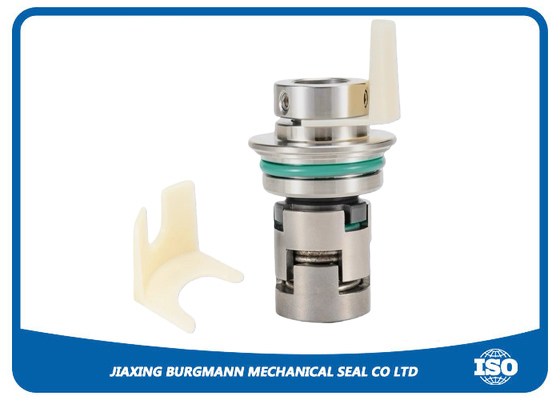

CR Pump Mechanical Seal JMK

Product Overview

The JMK series is a precision-engineered mechanical seal designed specifically for Grundfos CR pumps. It features a balanced design with components manufactured from corrosion-resistant materials, typically incorporating a silicon carbide rotating face and a stationary seat to ensure reliable, leak-free operation in demanding applications.

Key Features

Performance Parameters: Speed up to 20 m/s, temperature range -30°C to +180°C, maximum pressure 40 bar
Structural Design: Cartridge structure for simplified installation and maintenance
Sealing Materials: Silicon carbide, tungsten carbide faces with fluorine rubber or EPDM secondary seals
Quality Assurance: 12-month warranty with strict quality control standards

Technical Specifications

Product Name	Pump Mechanical Seal suitable for Grundfos Pump
Item No.	RS
Materials	Stationary Ring: Carbon/SIC/TC; Rotary Ring: SIC/TC; Retainer: SUS304/SUS316; Spring: SUS304/SUS316; O-Ring: NBR/EPDM/PTFE
Medium	Water, oil and other weak corrosive medium
Temperature	-20°C to +150°C
Pressure	≤0.6MPa
Linear Velocity	≤10m/s
Application	Rotating equipment, pumps, mixers, agitators and compressors

Product Advantages

Wear resistant products
Superior sealing effects
Low friction
Easy replacement
Strong QC and R&D teams
Reasonable factory price
Small order quantity welcomed
Custom design development
Customized specifications welcome
OEM and ODM orders welcome

Sealing Ring Performance Specifications

Tungsten Carbide Sealing Ring

Property	Value
Density (g/cm³)	14-15
Hardness (HS)	87-91
Elastic Modulus (MPa)	608100
Bend Strength (MPa)	1420-2058
Coefficient of Heat Expansion (10⁻⁶/°C)	4.5-6.3
Thermal Conductivity (cal/cm·s·°C)	0.17

SIC Sealing Ring

Property	Value
Density (g/cm³)	3.00-3.10
Hardness (HS)	110-125
Elastic Modulus (kg/mm²)	42×10³
Tensile Strength (kg/mm²)	28
Bend Strength (kg/mm²)	34
Compressive Strength (kg/mm²)	120
Thermal Conductivity (cal/cm·s·°C)	0.3

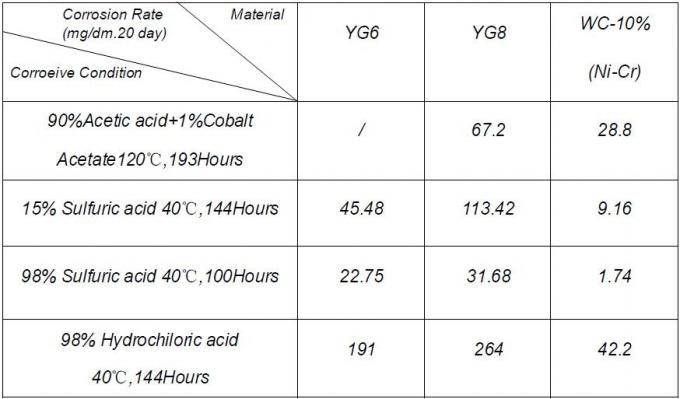

CR Pump Mechanical Seal JMK with pressure rating ≤0.6MPa and temperature range -20°C to +150°C for SUS304/SUS316 retainer

Frequently Asked Questions

What is the primary application of the JMK mechanical seal?

The JMK seal is engineered specifically for Grundfos CR series multi-stage centrifugal pumps. It is designed to handle clean, thin, non-aggressive fluids like water, making it suitable for applications in domestic water systems, pressure boosting, and industrial circulation.

What are the typical face materials used in the JMK seal, and why?

The standard configuration typically features a rotating face of Silicon Carbide (SiC) and a stationary seat of reaction-bonded Silicon Carbide. This material combination offers superior hardness, excellent thermal conductivity, and outstanding corrosion resistance, ensuring long-term reliability and minimal wear in clear water applications.

Is the JMK seal a cartridge or component seal?

The JMK is a component-type mechanical seal. It requires precise installation and setting of the individual components (e.g., rotating face, spring, stationary seat) directly onto the pump shaft and into the seal housing, as opposed to a pre-assembled cartridge unit.

What is the key differentiating factor of the JMK design for CR pumps?

A key feature is its balanced design. This design mitigates the effects of higher pump chamber pressures, preventing premature face opening and excessive wear. This is critical for maintaining seal integrity across the various stages and operating pressures of a CR pump.

How do I determine the correct JMK seal variant for my pump?

The correct variant is determined by the specific CR pump model (e.g., CR 5, CR 32) and the pump's shaft diameter. Always cross-reference the JMK part number (e.g., JMK-12 for a 12mm shaft) with the OEM's parts list for your pump's serial number to ensure compatibility.

What are common symptoms of a failing JMK mechanical seal?

Primary indicators include persistent visible leakage from the seal gland area, crystallization or mineral deposit buildup around the seal faces, and unusual noises from the pump seal chamber, potentially indicating face damage.

Can I use the JMK seal with fluids other than water?

The standard JMK seal with SiC/Carbon faces is for clean, non-aggressive fluids. For alternative media like mildly aggressive fluids or glycol mixtures, consult the manufacturer's chemical resistance charts, as alternative elastomers (like EPDM instead of Nitrile) or face materials may be required.

What is the importance of the elastomer bellows in the JMK seal?

The elastomer bellows (typically Nitrile) serves multiple functions: it acts as a static seal on the shaft, accommodates minor axial and angular misalignment, and provides a spring-loaded force to maintain contact between the primary seal faces during operation and thermal expansion.
