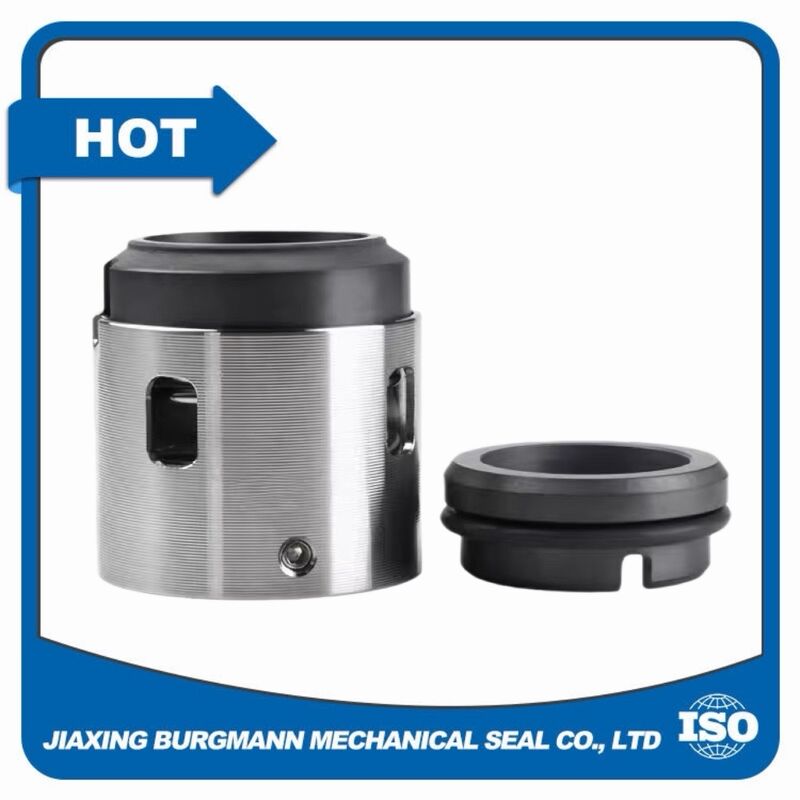

High Pressure Multi Spring Mechanical Seal H76

High Pressure Multi Spring Mechanical Seal H76

The H76 is a high pressure multi spring mechanical seal engineered for pumps that must keep a tight, stable seal under heavy pressure. Where a single big spring seal tends to lose even face contact as pressure climbs, the high pressure multi spring mechanical seal holds the faces evenly loaded and running cool. Several circumferential springs spread the load across the seal face and cancel centrifugal effects at high rotational speed, so the high pressure multi spring mechanical seal stays dependable through pressure spikes, frequent start stop cycles and large axial runout.

Every H76 high pressure multi spring mechanical seal is balanced and pressure tested to 4.0 MPa before shipment, so it arrives as a leak proof mechanical seal ready for high pressure pump service. The balanced structure keeps face loading low and friction heat down, giving long seal life in chemical, refinery and fertilizer plants. As a drop in replacement for the EagleBurgmann H76, this high pressure multi spring mechanical seal keeps the original cavity dimensions and needs no pump modification, which cuts downtime and simplifies maintenance planning.

Technical Specifications

Applications

• High pressure chemical standard pumps and process pumps
• Refinery and petrochemical centrifugal pumps
• Fertilizer and ammonia plant pumps
• High pressure mixers, agitators and compressors
• High speed rotating equipment

Key Advantages

• High pressure capability up to 4.0 MPa through a balanced multi spring structure
• Multiple springs spread the face load evenly and resist centrifugal effects at high speed
• Balanced design lowers face pressure and heat for longer seal life
• Direct replacement for EagleBurgmann H76 with no pump cavity change
• 100% pressure tested before shipment for a leak proof high pressure mechanical seal

Frequently Asked Questions

Q1: How much pressure can this high pressure multi spring mechanical seal handle?
A: The H76 high pressure multi spring mechanical seal is rated up to 4.0 MPa, so it suits high pressure chemical, refinery and fertilizer pumps where a single big spring seal cannot keep the faces closed.

Q2: Why choose a multi spring design for high pressure service?
A: In a high pressure multi spring mechanical seal, several small springs share the face load instead of one big spring. This keeps the seal face evenly loaded and stable at high pressure and high speed.

Q3: Is the H76 a balanced mechanical seal?
A: Yes. The H76 is a balanced high pressure multi spring mechanical seal, so face loading stays low even at 4.0 MPa, which cuts friction heat and extends service life.

Q4: Can the H76 replace my existing EagleBurgmann H76?
A: Yes. Its dimensions follow ISO 3069 and DIN 24960, so this high pressure multi spring mechanical seal drops in without changing the pump cavity.
